Blackhawk M2M Squid Transit Antenna - MIMO LTE / MIMO WiFi / GPS (5m cables)
Blackhawk M2M Squid Transit Antenna - MIMO LTE / MIMO WiFi / GPS (5m cables)
  • Blackhawk M2M Squid Transit Antenna - MIMO LTE / MIMO WiFi / GPS (5m cables)
Product Details ＋

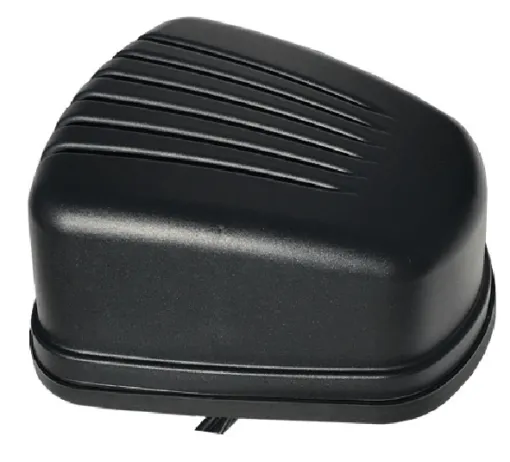

The Blackhawk M2M Squid transit antenna can be mounted on the roof of a vehicle or fixed structure.

  • Omni-directional heavy-duty IP67 waterproof external M2M antenna
  • For use in telematics transportation and remote monitoring applications.
  • Two elements designed to cover the 698-960/1710-2170/2900-3800MHz cellular bands (2 x SMA male)
  • Two elements designed to cover the 2.4-2.5 and 4.9/5.85 GHz (2 x RP-SMA male)
  • One GPS Galileo GLONASS Beidou element (SMA male)
  • Has its own ground-plane and can radiate on any mounting environment without affecting performance.
  • 5-port antenna with 5-metre low-loss cables

ELECTRICAL SPECIFICATIONS

GPS(GLONASS) Part:
Connector1 x SMA male
Frequency Range1575.42MHz±3 MHz/1602-1610MHz
Polarization TypeRHCP
Impedance50Ω
Radiation Efficiency50(without cable)
LNA Gain28±2dB Typical
Noise Figure3-3.5dB
V.S.W.R＜2.0
DC Voltage2.2-5.0V
DC Current5-15mA
WIFI Part:
Connector2 x RP-SMA male
Frequency Range2.4/5GHZ
V.S.W.R＜1.5
Gain5/7dBi
PolarizationLinear
Impedance50Ω
LTE Part:
Connector2 x SMA male
Frequency range698-960MHz 1710-2170MHz
2300-2700MHz 2900-3800MHz
V.S.W.R＜1.5
Gain2.5/5/6dBi
PolarizationVertical
Impedance50Ω

MECHANICAL SPECIFICATIONS

HousingBlack
CableGPS: RG174  LTE&WIFI: RG58
Length55m
ConnectorSMA(m)
Operation Temperature-40℃~ 85℃
Humidity65%-95%RH
WaterproofIP67
Antenna Radome MaterialABS
Mount wayScrew
Antenna Dimension161.7×148.6x78mm
Weight1.2KG

Weight1.2 kg

Blackhawk M2M Squid Transit Antenna - MIMO LTE / MIMO WiFi / GPS (5m cables)
  • DefaultTitle

$ 75.80

$ 58.31

Please select combo product attributes
The combo subtotal is $,SAVE$
Unavailable
