Blackhawk M2M Jellyfish Antenna – MIMO LTE / MIMO WiFi / GPS (3m cables)
Blackhawk M2M Jellyfish Antenna – MIMO LTE / MIMO WiFi / GPS (3m cables)
  • Blackhawk M2M Jellyfish Antenna – MIMO LTE / MIMO WiFi / GPS (3m cables)
Product Details ＋

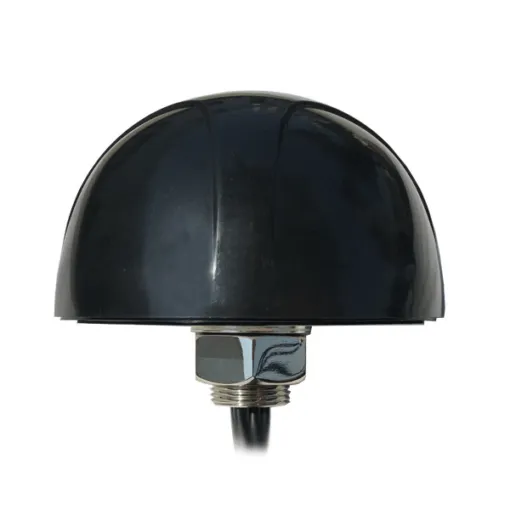

The Blackhawk M2M Jellyfish antenna can be mounted on the roof of a vehicle or a fixed structure.

  • Omni-directional heavy-duty IP67 waterproof external M2M antenna
  • For use in telematics transportation and remote monitoring applications
  • Two elements designed to cover the 698-960 & 1710-2700MHz cellular bands (2 x SMA male)
  • Two elements designed to cover the 2.4-2.5 and 4.9-5.85 GHz WLAN bands (2 x RP-SMA male)
  • One GPS(GLONASS) element (SMA male)
  • Has its own grounding plane and can radiate on any mounting environment without affecting performance.
  • 5-port antenna with 3-metre low-loss cable

ELECTRICAL SPECIFICATIONS

GPS(GLONASS) Part:
Connectors1 x SMA male
Frequency Range1575.42MHZ±3 MHz/1602-1610MHz
Polarization TypeRHCP
Impedance50Ω
LNA Gain28±2dB Typical
Noise Figure3-3.5dB
V.S.W.R＜2.0
DC Voltage2.2-5.0V
DC Current5-15mA
WIFI Part:
Connectors2 x RP-SMA male
Frequency Range2400-2500MHz 4900-5850MHz
V.S.W.R＜2.0
Gain6/8dBi
PolarizationLinear
Impedance50Ω
LTE Part:
Connectors2 x SMA male
Frequency Range698-960MHz，1710-2170MHz 2300-2700MHz 2900-3800MHz
V.S.W.R3 Max
Gain3/5/6/7dBi
PolarizationVertical
Impedance50Ω

MECHANICAL SPECIFICATIONS

HousingBlack
CableGPS: RG174                                  LTE&WIFI: RG58
Length3m
ConnectorSMA(m)
Operation Temperature-40℃~ 85℃
Humidity65%-95%RH
WaterproofIP67
Antenna Radome MaterialABS
Mount wayScrew
Antenna DimensionФ143.5×80mm
Weight1.2KG

Weight1.2 kg

Blackhawk M2M Jellyfish Antenna – MIMO LTE / MIMO WiFi / GPS (3m cables)
  • DefaultTitle

$ 84.89

$ 65.30
