FEATURES

Designed for use on professional tours, in stadiums, concert halls, festivals, houses of worship and other demanding audio environments, the Audio-Technica 5000 Series provides incredible audio quality and proven, critically acclaimed performance for artists, broadcasters and presenters worldwide.
Balanced and unbalanced audio output jacks

• Dual-channel receiver provides 148 MHz UHF tuning bandwidth (470–608 MHz and 653–663 MHz) for maximum versatility in an ever-congested RF environment
• Antenna cascade output allows 8 receivers to be connected so that a single pair of antennas can feed up to 16 channels of wireless. These connectors also provide a simple RF cable check feature to aid in RF troubleshooting
• Auto Squelch feature automatically adjusts squelch setting to maximize range while minimizing potential interference
• Unique multifunction button on the handheld and body-pack transmitters can be used to switch to a backup frequency (on both transmitter and receiver) should interference be encountered
• Dual Compander circuitry processes high and low frequencies separately for unmatched audio quality

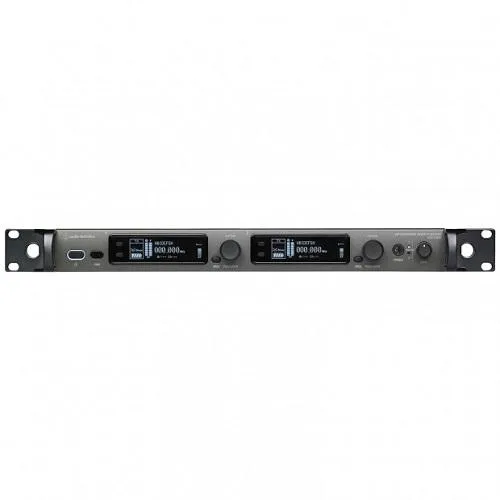

• The full-rack receiver chassis holds two independent receivers, and offers antenna power, frequency scan and IR sync functionality, a ground-lift switch, and a front-panel headphone jack
• Dual-mode, highly visible OLED receiver screen can switch between standard view or a performance view that highlights key metering

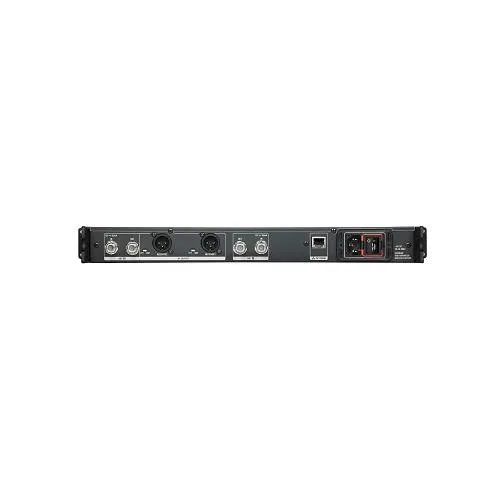

• Receiver is available with two balanced XLR outputs (ATW-R5220) or with two balanced XLR outputs and a Dante output (ATW-R5220DAN)
• Both transmitters are available in two bands – DE1 (470–590 MHz) and EF2 (580–608 MHz, 653–663 MHz) – and offer rugged, ergonomic metal bodies, highly visible OLED displays, programmable features, soft-touch controls, and switchable 2/10/50 mW RF power
• Handheld transmitter features high-pass filter and accepts six interchangeable microphone capsules (based on best-selling Audio-Technica models) that use industry-standard thread mount and provide low-handling noise
• New rugged cH-style connector on body-pack transmitter provides secure connection to lavalier mics, headworn mics, and cables with cH-style screw-down 4-pin connector
• Advanced digital Tone Lock™ squelch effectively blocks stray RF; the digitally encoded tone also communicates transmitter data for receiver display
• Wireless network monitoring and control software
• 5000 Series components are offered individually – not as preconfigured systems – for greater flexibility
